SmolVLA 异步推理：远程 Policy Server 与本地 Client 实操
概述
本文记录lerobot smolvla异步推理实践，将SmolVLA的策略server部署到AutoDL上，真机client在本地笔记本上运行。
环境准备
先登录AutoDL事先搭建好lerobot的环境，这里就不再重复了，参考往期文章。lerobot环境搭建好后，需要先安装smolvla和gRPC。
# 建议先升级打包工具
python -m pip install -U pip setuptools wheel
pip install -e ".[smolvla]"
# 安装 gRPC 及相关
python -m pip install grpcio grpcio-tools protobuf
服务器
python src/lerobot/scripts/server/policy_server.py \
--host=127.0.0.1 \
--port=8080 \
--fps=30 \
--inference_latency=0.033 \
--obs_queue_timeout=2
启动成功后的日志如下：
python src/lerobot/scripts/server/policy_server.py --host=127.0.0.1 --port=8080 --fps=30 --inference_latency=0 --obs_queue_timeout=2
INFO 2025-08-28 10:33:07 y_server.py:384 {'fps': 30,
'host': '127.0.0.1',
'inference_latency': 0.0,
'obs_queue_timeout': 2.0,
'port': 8080}
INFO 2025-08-28 10:33:07 y_server.py:394 PolicyServer started on 127.0.0.1:8080
被客户端连接后的日志：
INFO 2025-08-28 10:40:42 y_server.py:104 Client ipv4:127.0.0.1:45038 connected and ready
INFO 2025-08-28 10:40:42 y_server.py:130 Receiving policy instructions from ipv4:127.0.0.1:45038 | Policy type: smolvla | Pretrained name or path: outputs/smolvla_weigh_08181710/pretrained_model | Actions per chunk: 50 | Device: cuda
Loading HuggingFaceTB/SmolVLM2-500M-Video-Instruct weights ...
INFO 2025-08-28 10:40:54 odeling.py:1004 We will use 90% of the memory on device 0 for storing the model, and 10% for the buffer to avoid OOM. You can set `max_memory` in to a higher value to use more memory (at your own risk).
Reducing the number of VLM layers to 16 ...
Loading weights from local directory
INFO 2025-08-28 10:41:14 y_server.py:150 Time taken to put policy on cuda: 32.3950 seconds
INFO 2025-08-28 10:41:14 ort/utils.py:74 <Logger policy_server (NOTSET)> Starting receiver

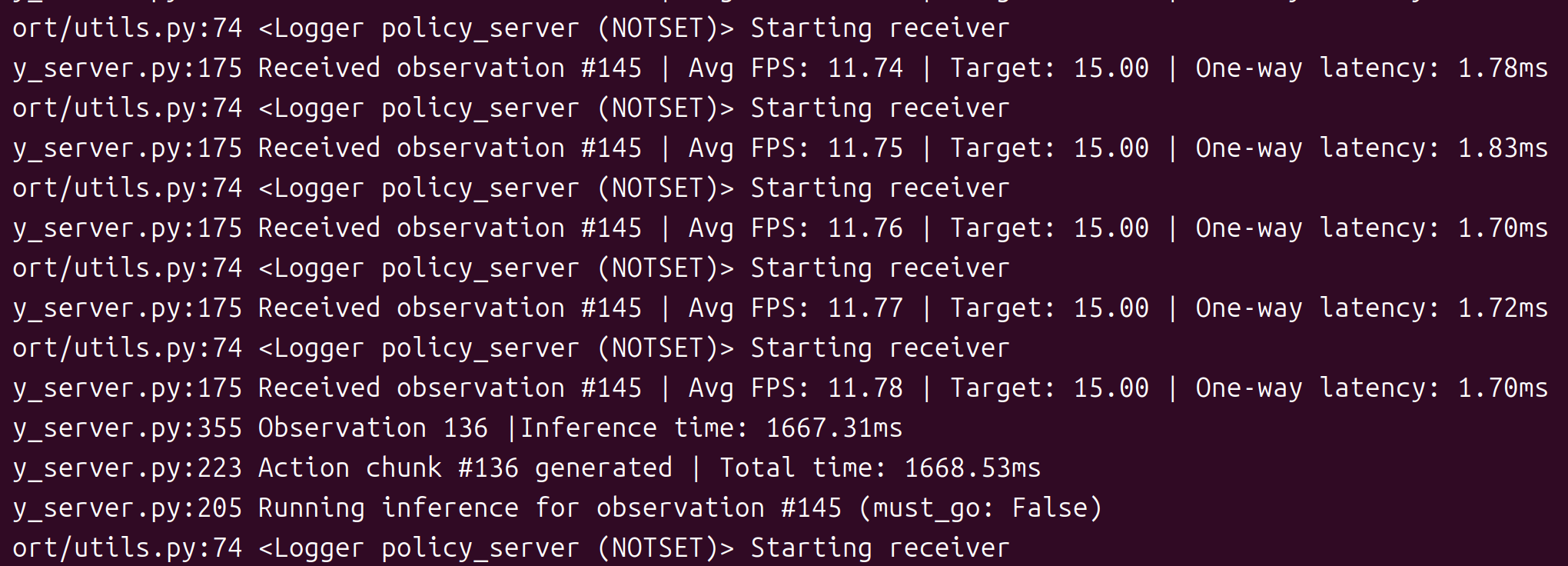

INFO 2025-08-28 10:41:14 y_server.py:175 Received observation #0 | Avg FPS: 3.45 | Target: 30.00 | One-way latency: -9.22ms
INFO 2025-08-28 10:41:14 y_server.py:205 Running inference for observation #0 (must_go: True)
INFO 2025-08-28 10:41:15 ort/utils.py:74 <Logger policy_server (NOTSET)> Starting receiver
INFO 2025-08-28 10:41:15 y_server.py:175 Received observation #0 | Avg FPS: 3.45 | Target: 30.00 | One-way latency: -9.58ms
服务器仅本地监听(12.0.0.1)，这样不暴露公网，客户端通过SSH隧道安全转发。
nohup python src/lerobot/scripts/server/policy_server.py \
--host=127.0.0.1 --port=8080 --fps=30 --inference_latency=0.033 --obs_queue_timeout=2 \
>/tmp/policy_server.log 2>&1 &
也可以选择后台运行。
客户端
建立SSH转发
在本地客户端线建立SSH本地端口转发（隧道）
ssh -p <服务器ssh的port> -fN -L 8080:127.0.0.1:8080 <用户名@服务器ssh的ip或域名>
如：ssh -p 20567 -fN -L 8080:127.0.0.1:8080 root@connect.xx.xxx.com
如果不想后台运行，运行在前台（Crtl+C结束）
ssh -p 20567 -N -L 8080:127.0.0.1:8080 root@connect.xx.xxx.com
本地运行
python src/lerobot/scripts/server/robot_client.py \
--robot.type=so101_follower --robot.port=/dev/ttyACM0 --robot.id=R12252801 \
--robot.cameras="{ handeye: {type: opencv, index_or_path: 6, width: 320, height: 240, fps: 25}, fixed: {type: opencv, index_or_path: 0, width: 320, height: 240, fps: 25}}" \
--policy_type=smolvla \
--pretrained_name_or_path=outputs/smolvla_weigh_08181710/pretrained_model \
--policy_device=cuda \
--actions_per_chunk=10 \
--fps=30 \
--server_address=localhost:8080
–pretrained_name_or_path 会在“服务器上”加载。需要确保服务器上outputs/smolvla_weigh_08181710路径有权重文件。
连接执行的日志如下：
python src/lerobot/scripts/server/robot_client.py --robot.type=so101_follower --robot.port=/dev/ttyACM0 --robot.id=R12252801 --robot.cameras="{ handeye: {type: opencv, index_or_path: 6, width: 320, height: 240, fps: 25}, fixed: {type: opencv, index_or_path: 0, width: 320, height: 240, fps: 25}}" --policy_type=smolvla --pretrained_name_or_path=outputs/smolvla_weigh_08181710/pretrained_model --policy_device=cuda --actions_per_chunk=50 --chunk_size_threshold=0.8 --fps=30 --server_address=localhost:8080 --aggregate_fn_name=average
INFO 2025-08-28 10:40:38 t_client.py:478 {'actions_per_chunk': 50,
'aggregate_fn_name': 'average',
'chunk_size_threshold': 0.8,
'debug_visualize_queue_size': False,
'fps': 30,
'policy_device': 'cuda',
'policy_type': 'smolvla',
'pretrained_name_or_path': 'outputs/smolvla_weigh_08181710/pretrained_model',
'robot': {'calibration_dir': None,
'cameras': {'fixed': {'color_mode': <ColorMode.RGB: 'rgb'>,
'fps': 25,
'height': 240,
'index_or_path': 0,
'rotation': <Cv2Rotation.NO_ROTATION: 0>,
'warmup_s': 1,
'width': 320},
'handeye': {'color_mode': <ColorMode.RGB: 'rgb'>,
'fps': 25,
'height': 240,
'index_or_path': 6,
'rotation': <Cv2Rotation.NO_ROTATION: 0>,
'warmup_s': 1,
'width': 320}},
'disable_torque_on_disconnect': True,
'id': 'R12252801',
'max_relative_target': None,
'port': '/dev/ttyACM0',
'use_degrees': False},
'server_address': 'localhost:8080',
'task': '',
'verify_robot_cameras': True}
INFO 2025-08-28 10:40:40 a_opencv.py:179 OpenCVCamera(6) connected.
INFO 2025-08-28 10:40:41 a_opencv.py:179 OpenCVCamera(0) connected.
INFO 2025-08-28 10:40:41 follower.py:104 R12252801 SO101Follower connected.
WARNING 2025-08-28 10:40:42 ils/utils.py:54 No accelerated backend detected. Using default cpu, this will be slow.
WARNING 2025-08-28 10:40:42 /policies.py:80 Device 'cuda' is not available. Switching to 'cpu'.
WARNING 2025-08-28 10:40:42 ils/utils.py:54 No accelerated backend detected. Using default cpu, this will be slow.
WARNING 2025-08-28 10:40:42 /policies.py:80 Device 'cuda' is not available. Switching to 'cpu'.
INFO 2025-08-28 10:40:42 t_client.py:121 Initializing client to connect to server at localhost:8080
INFO 2025-08-28 10:40:42 t_client.py:140 Robot connected and ready
INFO 2025-08-28 10:40:42 t_client.py:163 Sending policy instructions to policy server
INFO 2025-08-28 10:41:14 t_client.py:486 Starting action receiver thread...
INFO 2025-08-28 10:41:14 t_client.py:454 Control loop thread starting
INFO 2025-08-28 10:41:14 t_client.py:280 Action receiving thread starting
INFO 2025-08-28 10:41:15 t_client.py:216 Sent observation #0 |

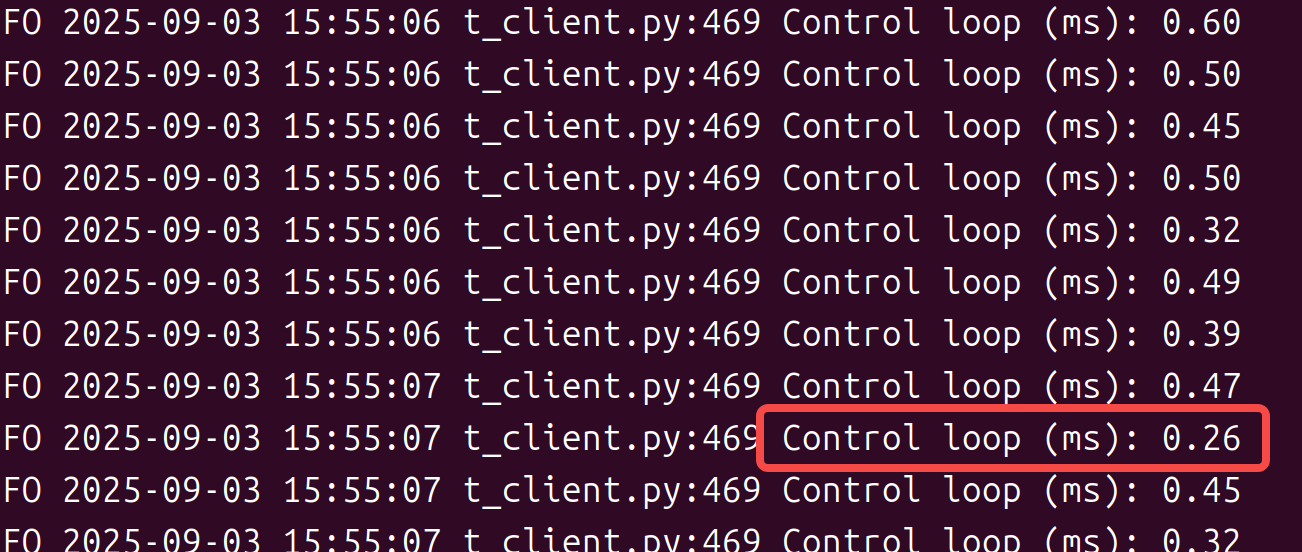

INFO 2025-08-28 10:41:15 t_client.py:469 Control loop (ms): 288.72
INFO 2025-08-28 10:41:15 t_client.py:216 Sent observation #0 |
INFO 2025-08-28 10:41:15 t_client.py:469 Control loop (ms): 132.22
INFO 2025-08-28 10:41:15 t_client.py:216 Sent observation #0 |
INFO 2025-08-28 10:41:15 t_client.py:469 Control loop (ms): 127.84
INFO 2025-08-28 10:41:15 t_client.py:216 Sent observation #0 |
INFO 2025-08-28 10:41:15 t_client.py:469 Control loop (ms): 123.95
INFO 2025-08-28 10:41:15 t_client.py:216 Sent observation #0 |
INFO 2025-08-28 10:41:15 t_client.py:469 Control loop (ms): 140.21
INFO 2025-08-28 10:41:15 t_client.py:469 Control loop (ms): 0.54
INFO 2025-08-28 10:41:15 t_client.py:469 Control loop (ms): 0.42
以上就是用SSH隧道的方式实现异步推理的过程。
